SAG-FL13

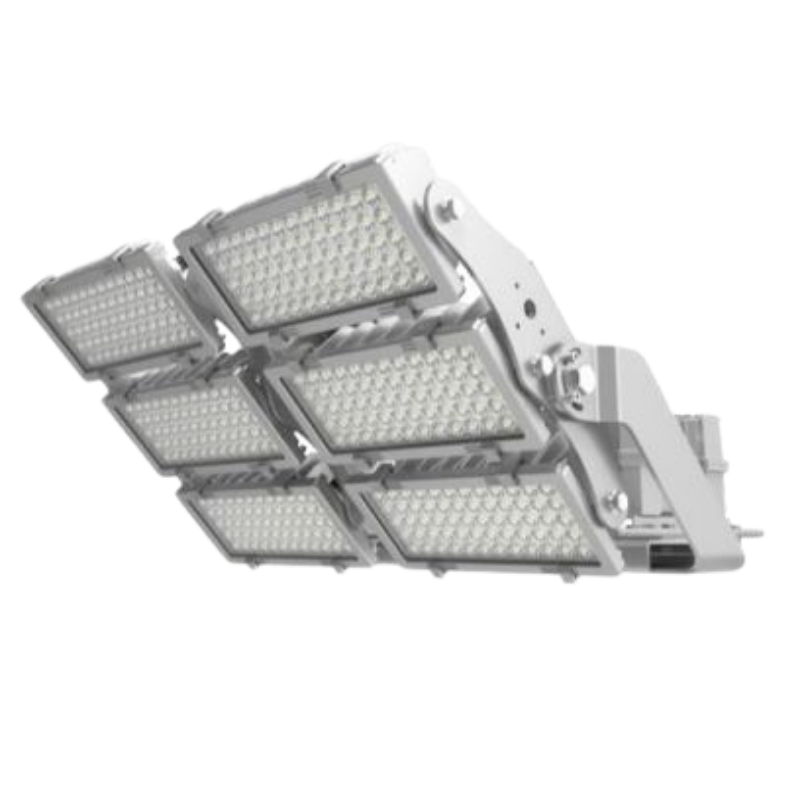

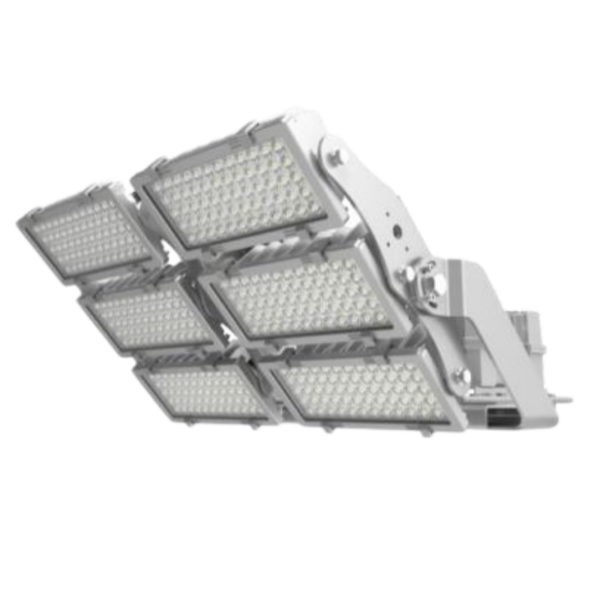

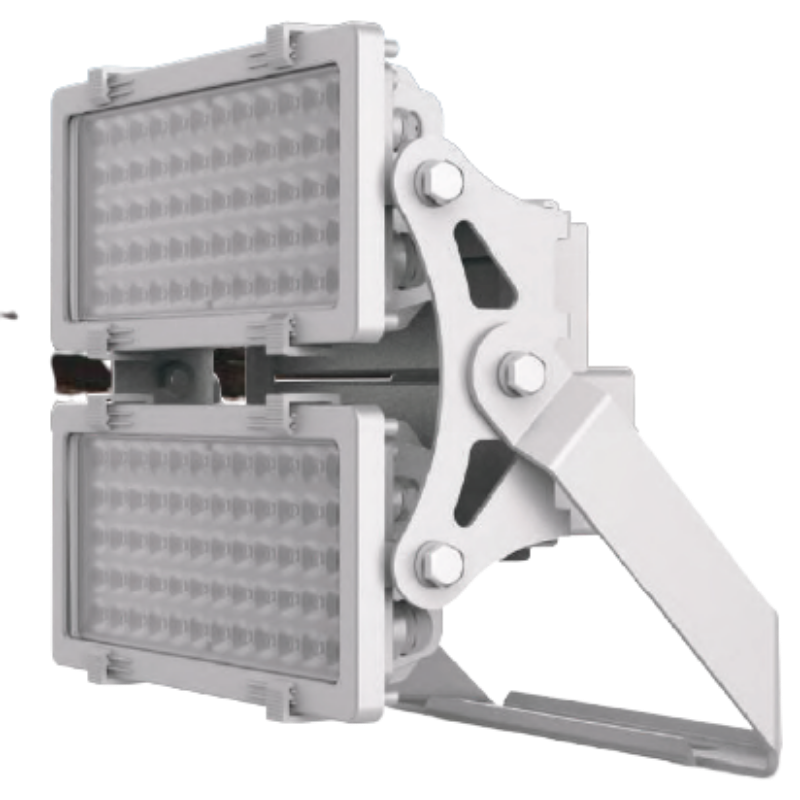

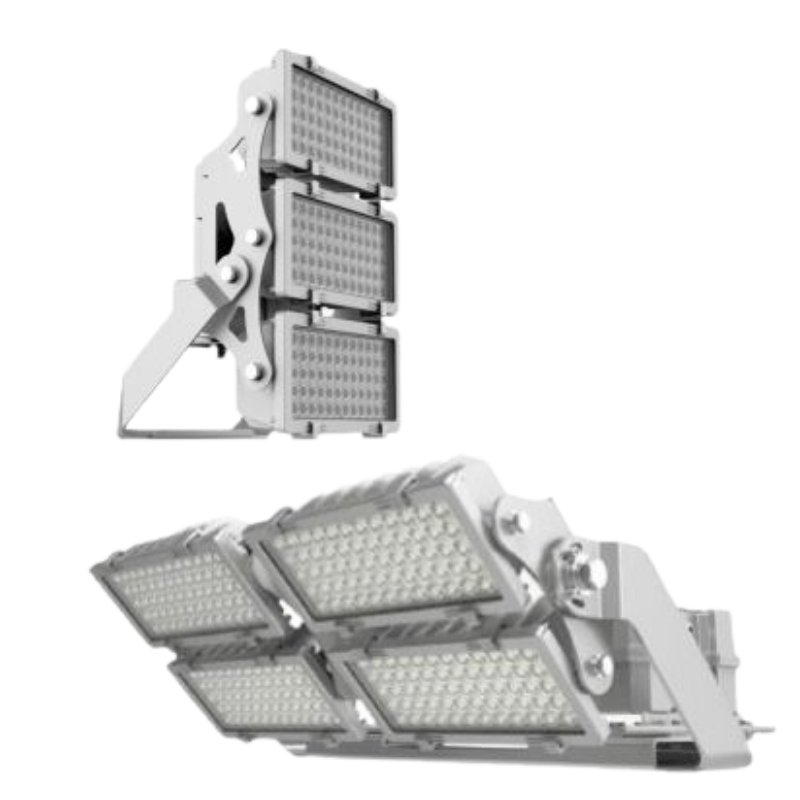

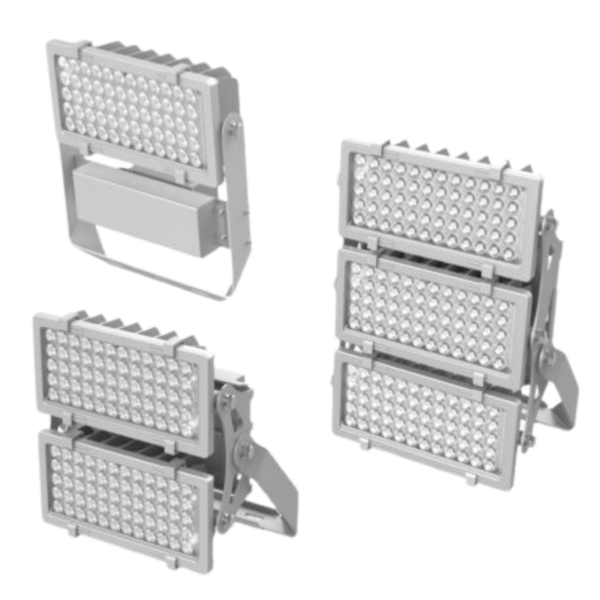

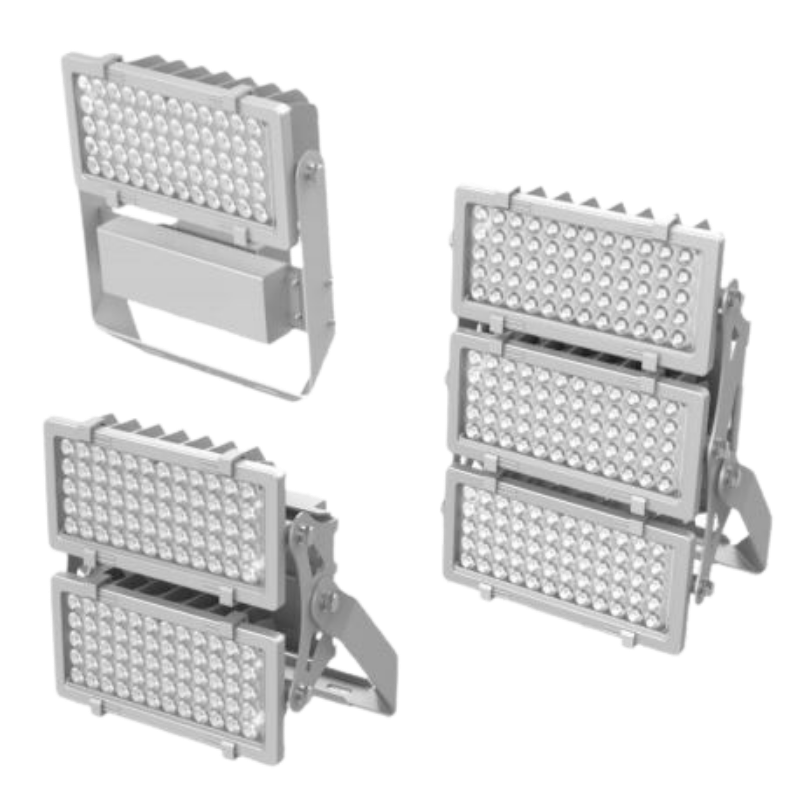

- HiFlex LED Floodlight c/w LED driver, LED chips & SPD.
- Model : SAG-FL13 (300W – 1,200W).
- HiFlex LED Floodlight is designed for high mounting outdoor applications (i.e. parking lots, stadium, exhibition center, outdoor sports area such as tennis court, soccer field and etc).
- Specifications of the floodlight can be customisable on special request.
| Power (wattage) : | 300W – 1200W |
|---|---|
| CCT : | Default : 5000K Optional : 3000K / 4000K / 6000K |
| IP rating : | IP66 & IP67 |
| Input Voltage | 100V ~ 240 VAC / 100v ~ 277 VAC |
| Frequency | 50 / 60 Hz |
| Luminous Flux : | 40,500lm – 162,000lm |
| Luminaire Efficiency : | 135 (±5%) lm/w |
| Operating temperature : | -30°C to 40°C |
| CRI (Ra) : | Default : Ra70 Optional : Ra80 / Ra90 |
| Dimmability : | Dimmable and Non-dimmable |
| Life Span : | > 50,000 hours |
| Intelligent control : | DALI Control |
| Mounting option : | Bracket mounting / Pole mounting |
| Material : | – Aluminium Alloy (housing material) – Tempered Glass and Polycarbonate Optical Lens (Optics material) – Electrophoresis and Powder coating finishing – Silver fixture exterior |
