SAG EC 5 (Large)

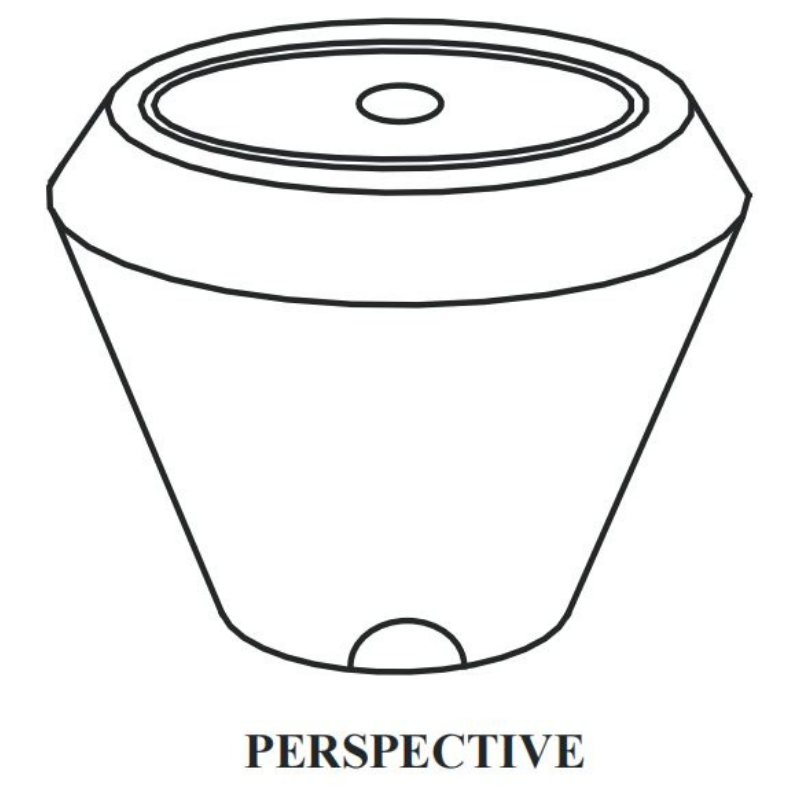

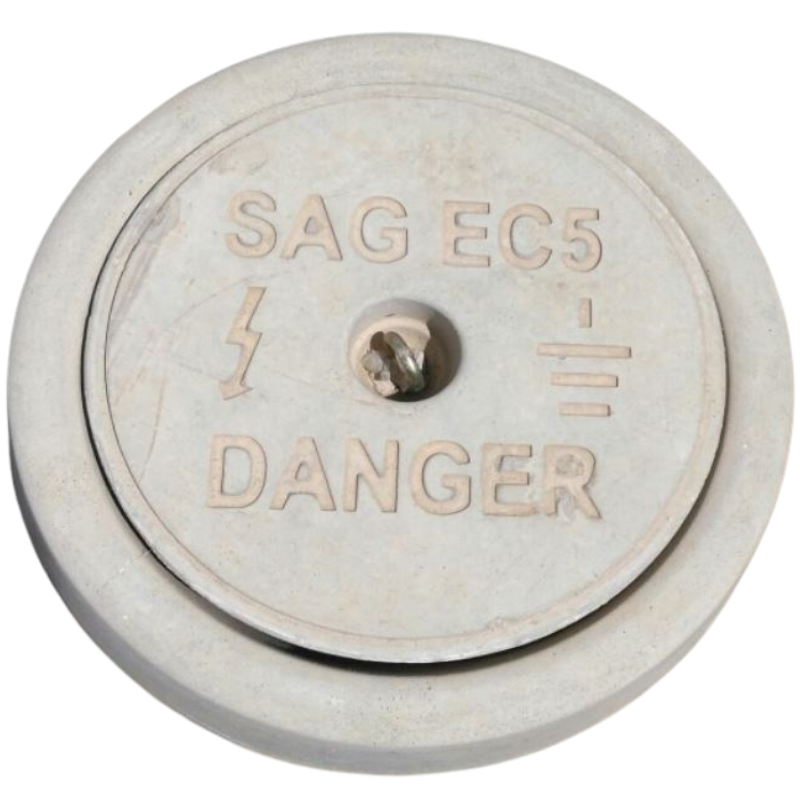

- Earth Chamber – SAG EC 5 (large size).
- Precast heavy duty concrete c/w cover and hot dipped galvanised hook.
- Conforms to BS1881-116:1983 (concrete testing) & designed to withstand compressive strength of 8.5MN/M².
- Made to protect the earthing and lighting protection system connection.
- Earth bars are not included (to order separately).

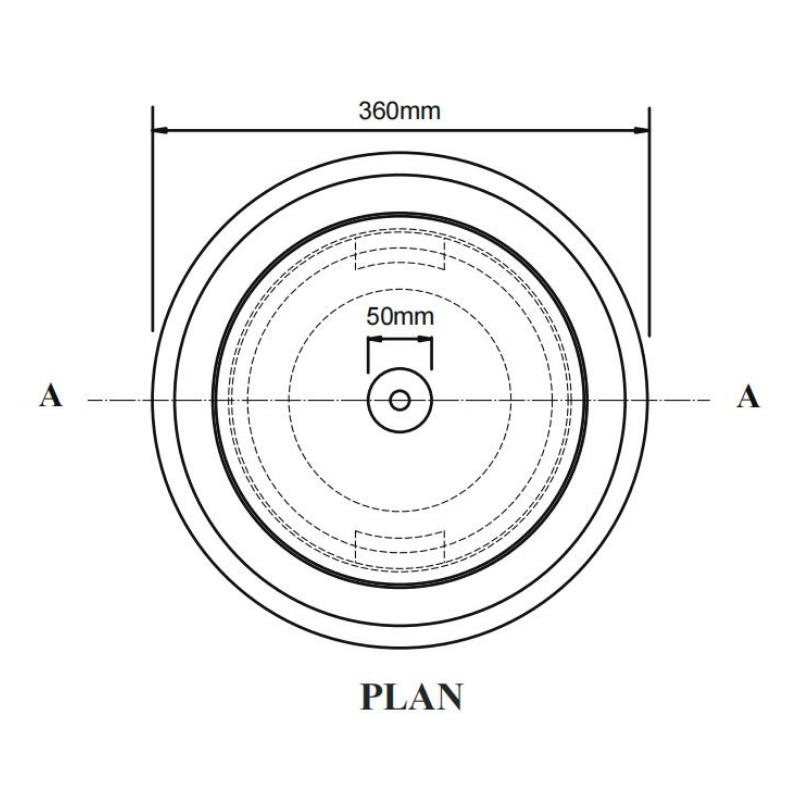

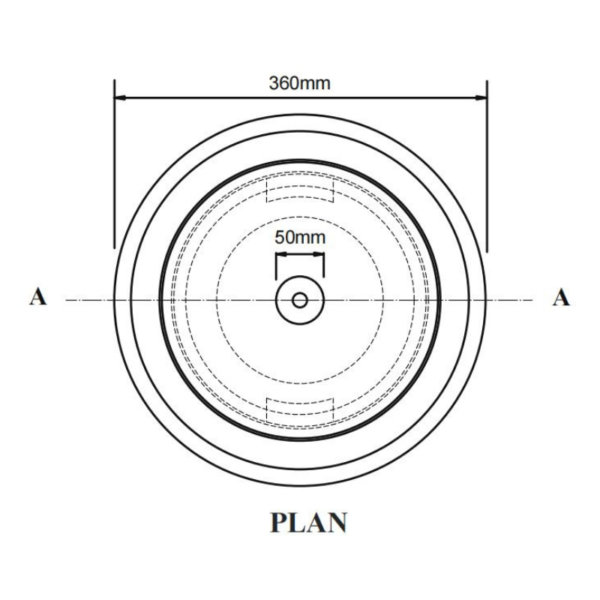

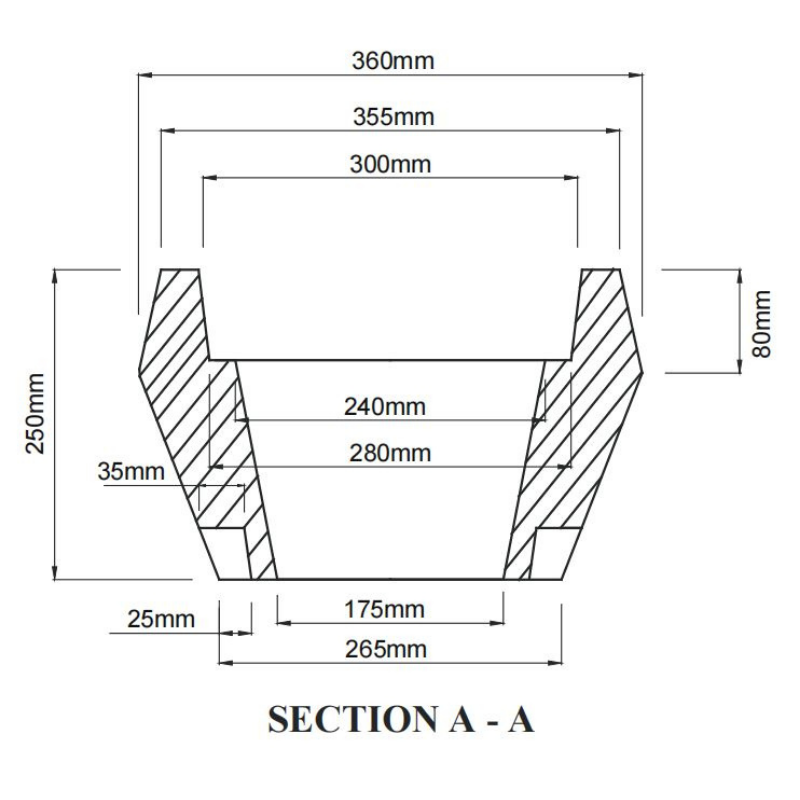

| Earth chamber width : | 360mm |
|---|---|

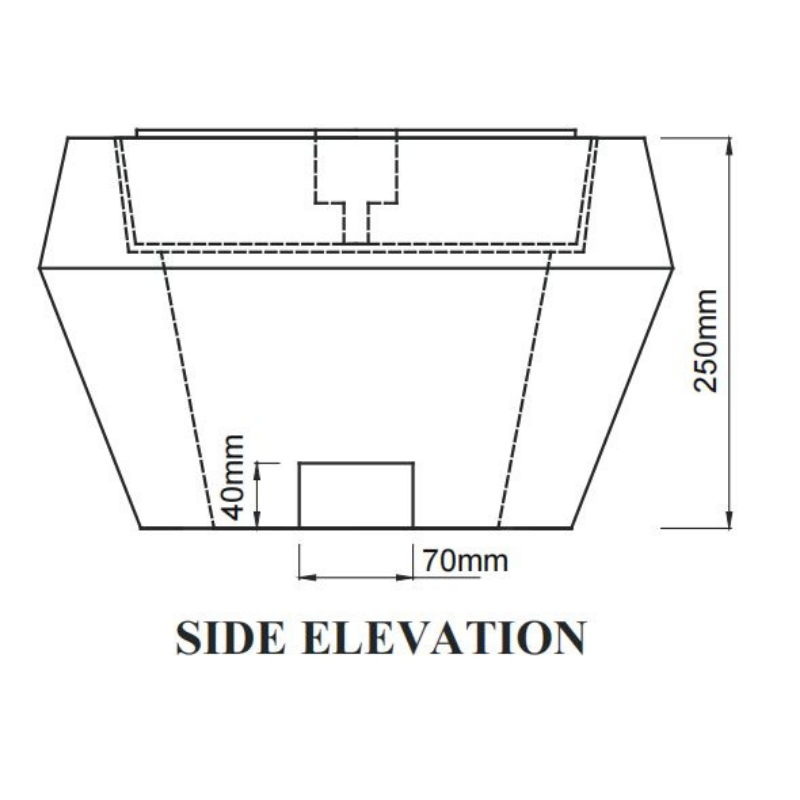

| Earth chamber height : | 250mm |
| Earth chamber weight : | 25kg |

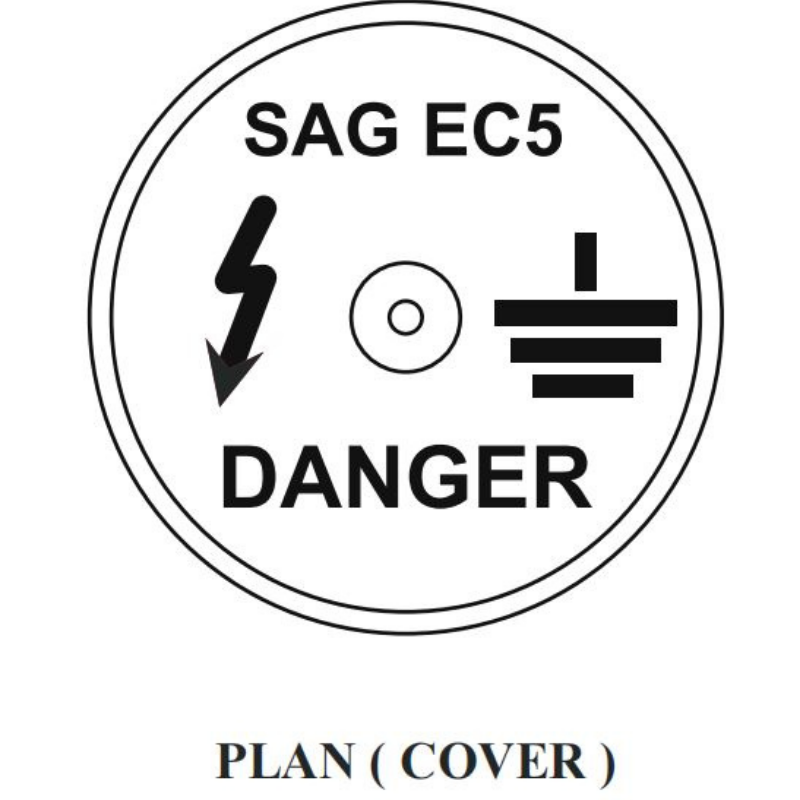

| Cover width : | 300mm |
| Cover height : | 60mm |
| Cover weight : | 10kg |

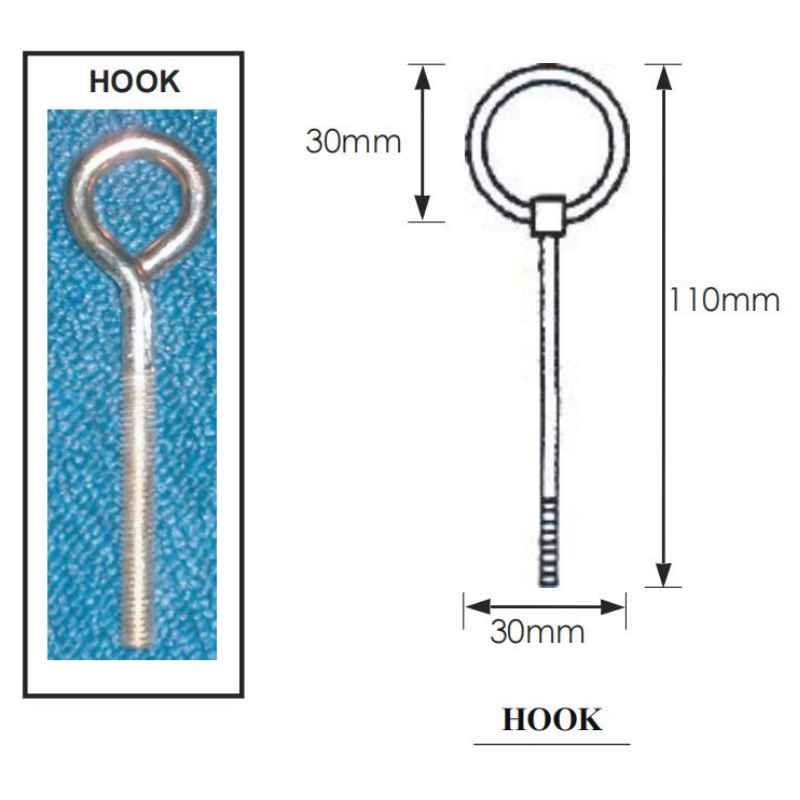

| Hook height : | 110mm |
| Cable groove : | Width : 70mm Height : 40mm |
- Click HERE for product catalogue.
